STANDARD CONTAINERS:

  Standard 20' dsdsdsd1
inside
length
inside
width
inside
height
door
width
door
height
capacity
tare
weight
maxi
cargo
19'4"
7'8"
7'10"
7'8"
7'6"
1,172CuFt
4,916lbs
47,900lbs
5.900m
2.350m
2.393m
2.342m
2.280m
33.2CBM
2,230Kg
21,770Kg
  Standard 40'
inside
length
inside
width
inside
height
door
width
door
height
capacity
tare
weight
maxi
cargo
39'5"
7'8"
7'10"
7'8"
7'6"
2,390CuFt
8,160lbs
59,040lbs
12.036m
2.350m
2.392m
2.340m
2.280m
67.7CBM
3,700Kg
26,780Kg


OPENTOP CONTAINERS:

  Opentop 20' xzsdq212111111
inside
length
inside
width
inside
height
door
width
door
height
capacity
tare
weight
maxi
cargo
19'4"
7'7"
7'8"
7'6"
7'2"
1,136CuFt
5,280lbs
47,620lbs
5.894m
2.311m
2.354m
2.286m
2.184m
32.23CBM
2,400Kg
21,600Kg
  Opentop 40'
inside
length
inside
width
inside
height
door
width
door
height
capacity
tare
weight
maxi
cargo
39'5"
7'8"
7'8"
7'8"
7'5"
2,350CuFt
8,490lbs
58,710lbs
12.028m
2.350m
2.345m
2.341m
2.274m
65.5CBM
3,850Kg
26,630Kg


FLATRACK CONTAINERS:

  Flatrack 20' fdsfee231212121
inside
length
inside
width
inside
height
door
width
door
height
capacity
tare
weight
maxi
cargo
18'5"
7'3"
7'4"
-
-
-
5,578lbs
47,333lbs
5.620m
2.200m
2.233m
-
-
-
2,530Kg
21,470Kg
  Flatrack 40'
inside
length
inside
width
inside
height
door
width
door
height
capacity
tare
weight
maxi
cargo
39'7"
6'10"
6'5"
-
-
-
12,081lbs
85,800lbs
12.080m
2.438m
2.103m
-
-
-
5,480Kg
39,000Kg


FLATRACK COLLAPSIBLE CONTAINERS:

  Flatrack Collapsible 20' fdfsds
inside
length
inside
width
inside
height
door
width
door
height
capacity
tare
weight
maxi
cargo
18'6"
7'3"
7'4"
-
-
-
6,061lbs
61,117lbs
5.618m
2.208m
2.233m
-
-
-
2,750Kg
17,730Kg
  Flatrack Collapsible 40'
inside
length
inside
width
inside
height
door
width
door
height
capacity
tare
weight
maxi
cargo
39'7"
6'10"
6'5"
-
-
-
12,081lbs
85,800lbs
12.080m
2.126m
2.043m
-
-
-
5,800Kg
39,000Kg


REEFER CONTAINERS:

  Reefer 20' fdfgdfd
inside
length
inside
width
inside
height
door
width
door
height
capacity
tare
weight
maxi
cargo
17'8"
7'5"
7'5"
7'5"
7'3"
1,000CuFt
7,040lbs
45,760lbs
5.425m
2.275m
2.260m
2.258m
2.216m
28.3CBM
3,200Kg
20,800Kg
  Reefer 40'
inside
length
inside
width
inside
height
door
width
door
height
capacity
tare
weight
maxi
cargo
37'8"
7'5"
7'2"
7'5"
7'0"
2,040CuFt
10,780lbs
56,276lbs
11.493m
2.270m
2.197m
2.282m
2.155m
57.8CBM
4,900Kg
25,580Kg
  Reefer High Cube 40'
inside
length
inside
width
inside
height
door
width
door
height
capacity
tare
weight
maxi
cargo
37'11"
7'6"
8'2"
7'6"
8'0"
2,344CuFt
9,900lbs
57,761lbs
11.557m
2.294m
2.500m
2.294m
2.440m
66.6CBM
4,500Kg
25,980Kg

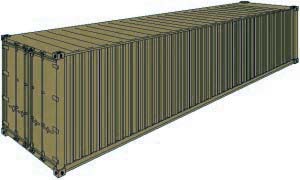

HIGH CUBE CONTAINERS:

  High Cube 40' ddsdw2311
inside
length
inside
width
inside
height
door
width
door
height
capacity
tare
weight
maxi
cargo
39'5"
7'8"
8'10"
7'8"
8'5"
2,694CuFt
8,750lbs
58,450lbs
12.036m
2.350m
2.697m
2.338m
2.565m
76.3CBM
3,970Kg
26,510Kg


PLATFORM CONTAINERS:

  Platform 20' seweq212121
inside
length
inside
width
inside
height
door
width
door
height
capacity
tare
weight
maxi
cargo
19'11"
8'0"
7'4"
-
-
-
6,061lbs
52,896lbs
6.058m
2.438m
2.233m
-
-
-
2,750Kg
24,000Kg
  Platform 40'
inside
length
inside
width
inside
height
door
width
door
height
capacity
tare
weight
maxi
cargo
40'0"
8'0"
6'5"
-
-
-
12,783lbs
86,397lbs
12.180m
2.400m
1.950m
-
-
-
5,800Kg
39,200Kg



40' Gooseneck Container Chassis Tandem

Overall Chassis Length
Overall Chassis Width
Tandem Location
Kingpin Location
Maximum Rear Height
Main Frame Width
Axle Centers
Landing Gear
fdfer22121
40ft. 6in.
96 inches
54 inches
30½ inches from rear face of front bolster.
48 in.
40 in.
49 inch
square leg. 50,000 lb. lift capacity and 140,000 static load capacity.
Axle Quantity
Suspension Type
Springs
Wall Thickness
GVWR
Weight
Main Beams
Gooseneck Beams
Two Axles
Spring-Ride
Three Leaf
1/2 inch
65,000 lbs
Approx. 6500 lbs.
Wide flange I-Beam 12 inch deep, 19 lb/ft, hot rolled
steel, ASTM A572-50
5 inches deep I-Beam, fabricated with ½ inch x 4-inch flanges and ¼ inch x 4 inch web


20-40 Tri-Axle City Combo Chassis:

Overall Chassis Length
Overall Chassis Width
Triaxle Location
Kingpin Location
Maximum Rear Height
Main Frame Width
Axle Centers
Landing Gear
fdrew211212
(20 ft position) 29 ft 7 inches
96 inches
85 3/4 inches
24 inches from rear face of front bolster
48 in.
40 in.
60 3/4inch
square leg 50,000 lb. lift
capacity
Axle Quantity
Suspension Type
Springs
Wall Thickness
GVWR
Weight
Main Beams
Gooseneck Beams
Three Axles
Spring-Ride
Three Leaf
1/2 inch
59,400 lb when in the 20’ position,
75,000 lb when in the 40’ position
Approx. 9,400 lbs.
Wide flange I-Beam 12 inch deep, 19 lb/ft, hot rolled
steel, ASTM A572-50
5 inches deep I-Beam, fabricated with 5/8 inch x 4 inch
flanges and 1/4 inch x 4 inch web
